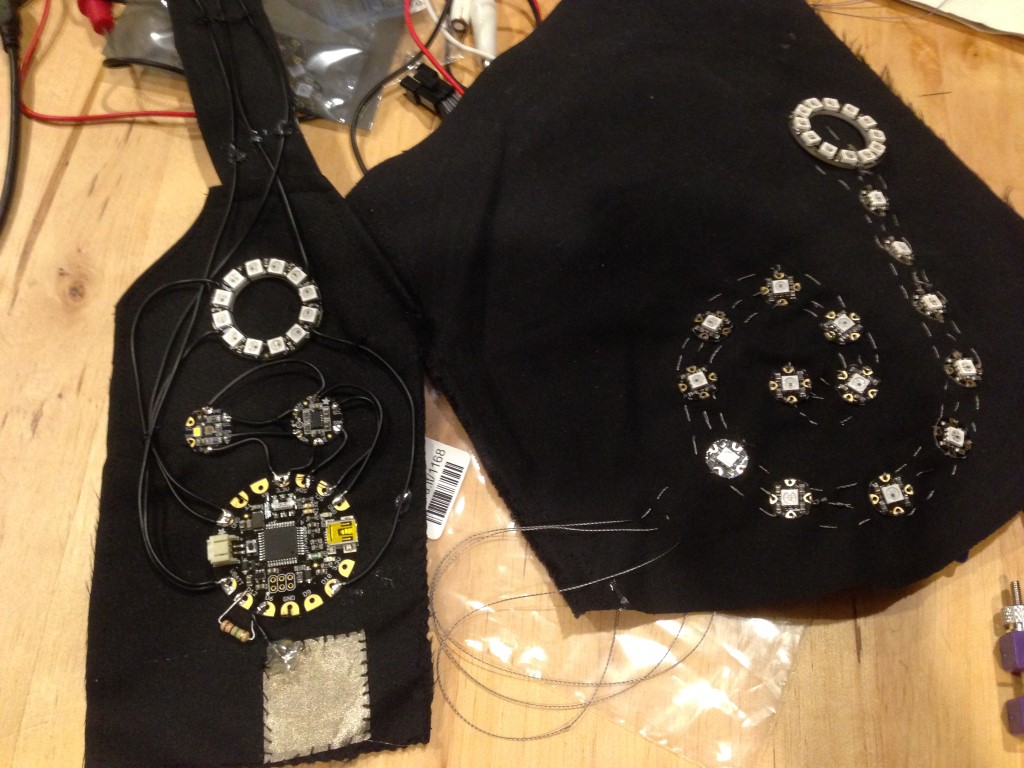

Thuy made a couple things too but no pictures. We spent much of the weekend working on lighting for the outfits. I didn’t take any picture/video of mine but here is a picture of the pieces of Thuy’s, which shows the controller, touch-sensitive pad, accelerometer, color sensor, and one ring of LEDs on the left, which will go on the front, and a pattern of LEDs (aka the Snail) that will be the back:

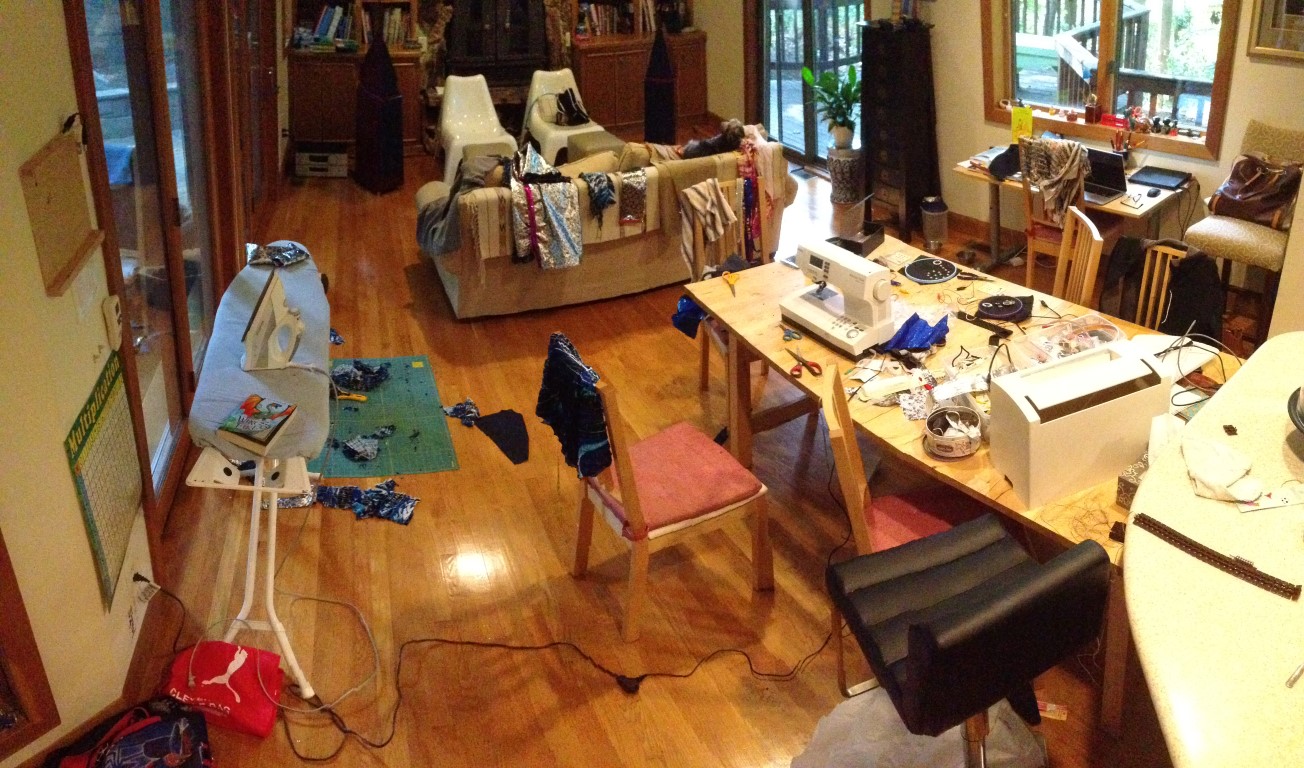

Here’s what the room looked like:
OLED lighting conditions
I moved my little OLED screen to the clock location and sent my clock module to Arron fo be 3D scanned, so we can model and print a replacement.
The weather was nice today so I had the top off and took a few pictures under various lighting conditions to show how it looks compared to the A/C-control display. Under all lighting conditions it’s at least as bright. I’m thinking for my final display, I will use two of these OLED screens or two slightly larger screens (1.7″ instead of 1.3″), maybe in combination with an LED-segment display. Still considering options.

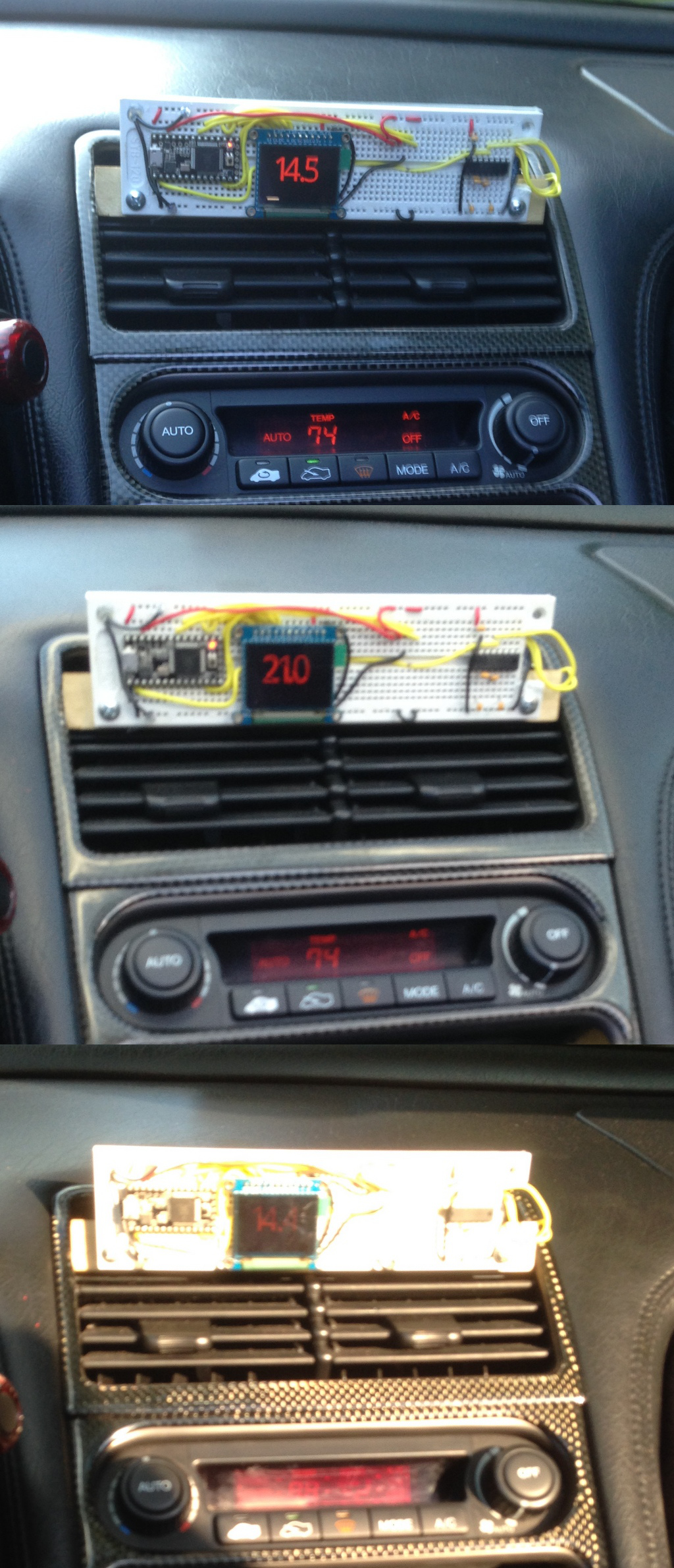

These shots were all taken within about 5 minutes of each other. Around 6:30 pm, first with light coming in the windshield, behind the display, then in the shade but with light from behind, and then with light directly on the console at a low, partially sideways angle:
fencing camp
Not sure who this is but it’s one of them:
Prototype in-car display

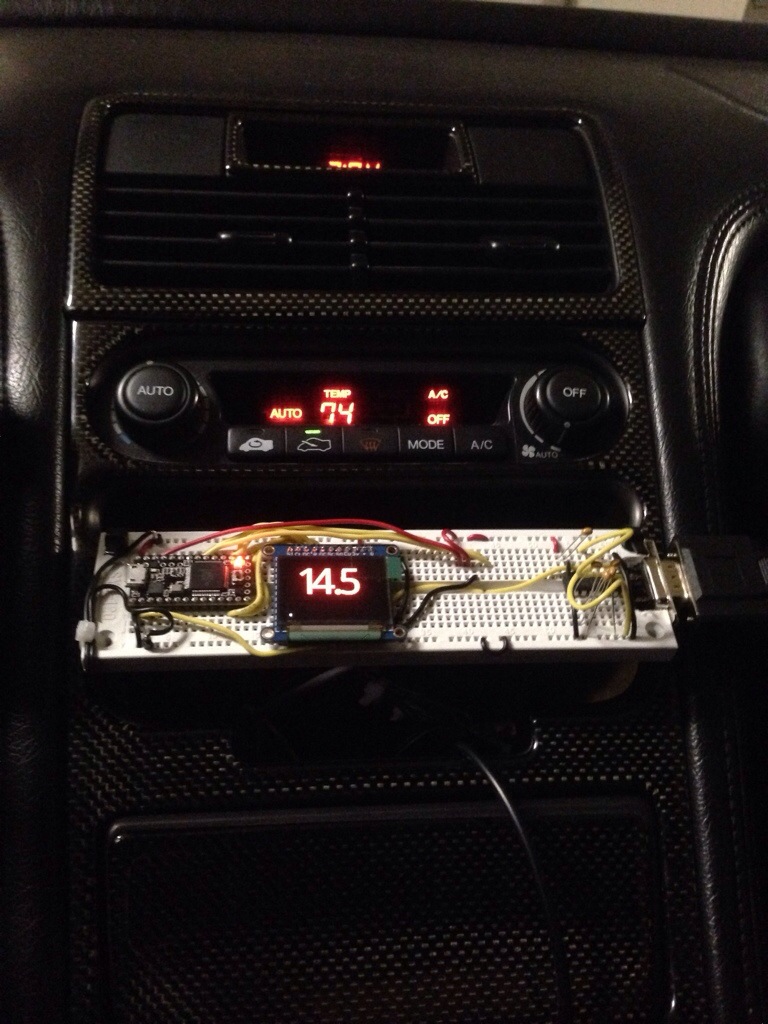

This is a display I’m working on to replace the clock in the NSX. It will show various parameters from the data-logging system I have, the Zeitronix ZT-2. In this video, the display is configured as follows:
From the bottom to the top,
- At top is a bar graph showing boost, following the same color coding as for the numeric MAP display below.
- Numeric displays show Manifold Air Pressure (MAP) and Air:Fuel Ratio (AFR).
- MAP is red under vacuum conditions (no boost), yellow when entering boost, and then green above 4 psi (max is about 6 psi with this supercharger setup).
- AFR is red when not under boost, white when AFR is below a desired value based on boost, and blue if above that value. I used a simple set of conditions where under a certain boost (currently set at 4 psi), the AFR must be under a certain value (set at 13 currently). For MAP above that boost threshold, the AFR must drop linearly (currently set with a slope of -0.5, so AFR must be under 12 at full boost of 6 psi).
- The fat bar near the bottom is the tachometer, which changes color to indicate shift point (green > red > blue).
- On bottom is a bar graph showing throttle position.
All the color-changing, moving elements are pretty confusing, and the display is very small. I need to think about the best information to display and the best way to display it. But this is a test setup to try out a few things. Figuring out the best way to draw bar graphs, changing colors, and even the numeric values took some time. There are still a couple of weird issues with reading the data consistently, as you can see in a flash of the display where MAP has a problem (at 0:12 in the video).
I don’t think there is any need for MAP unless under boost, so the numeric display for that can go away. TPS is similar: it’s not really something I want displayed. I will probably change the tachometer to only show up from 7,000-8,000 rpm, as a shift light. Otherwise, I have no need. So that leaves AFR and the boost gauge. I may do AFR with a bar graph too, as reading numbers isn’t all that useful. I do have a separate, very bright 4-digit alphanumeric display that I am considering adding, which could display AFR only when under boost, for example. I also have to think about how to mount the OLED in a way so that it’s shadowed from the sun, as that will be required for readability. Fun project though.
Infrastructure

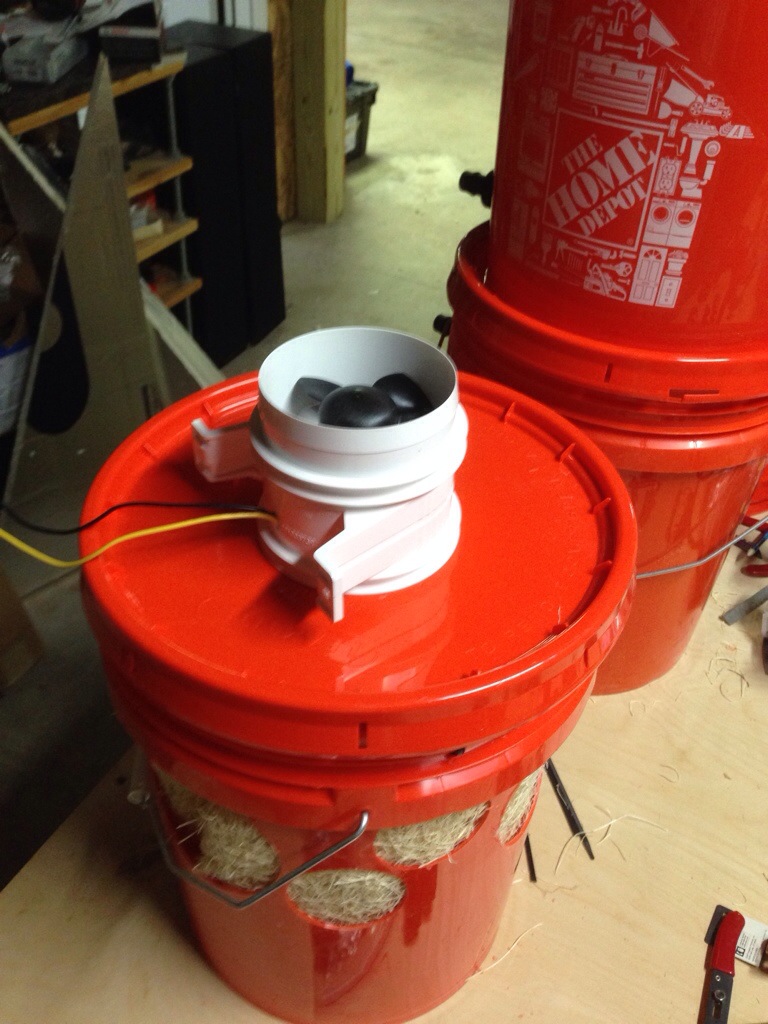

Evaporative cooler a.k.a. swamp cooler:

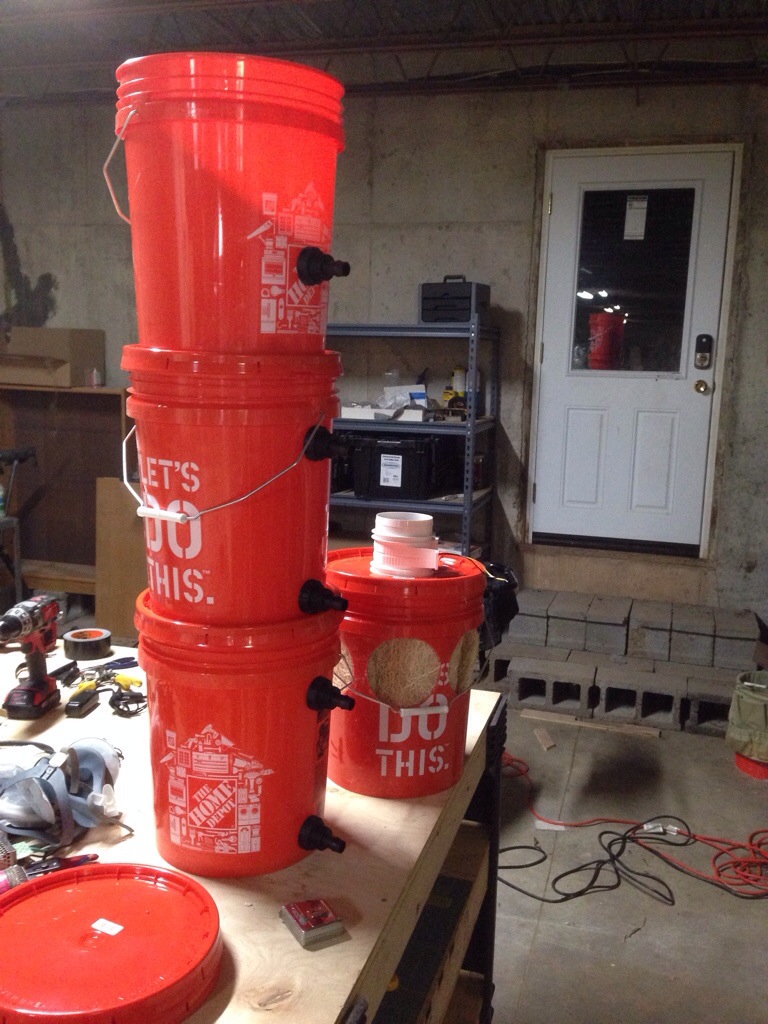

Bucket cascade for treating gray water; the top is for flocculation and settlement, then a valve will allow flow to the bottom two, which will be sand filters and chemical sanitation:

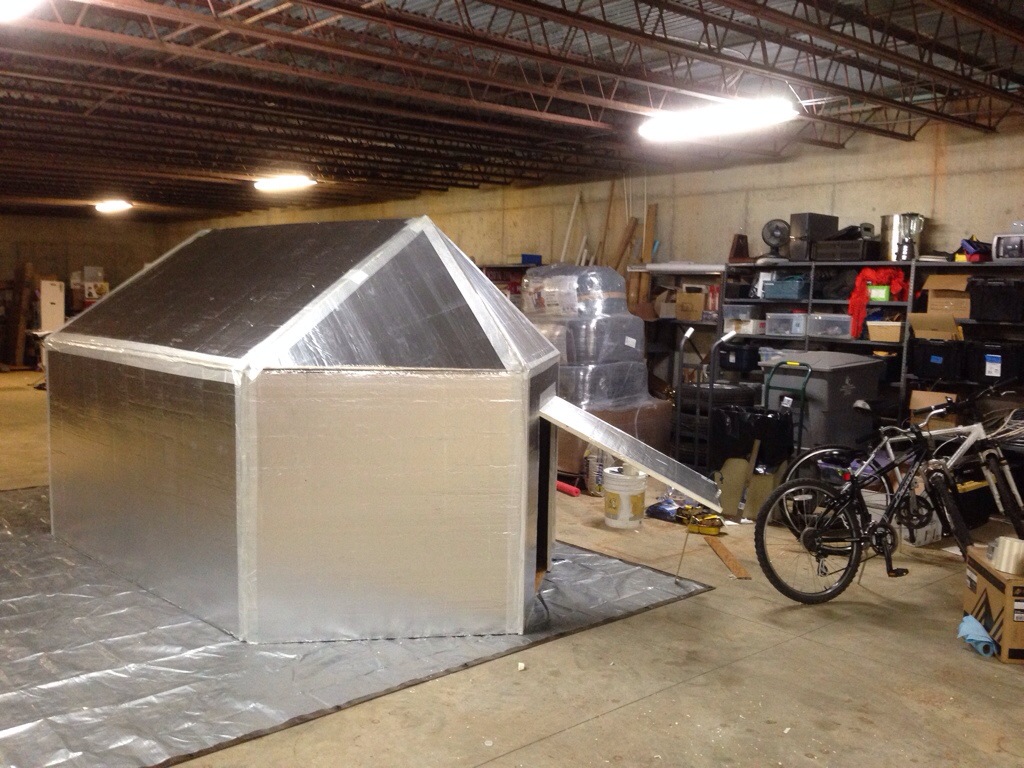

Yurt

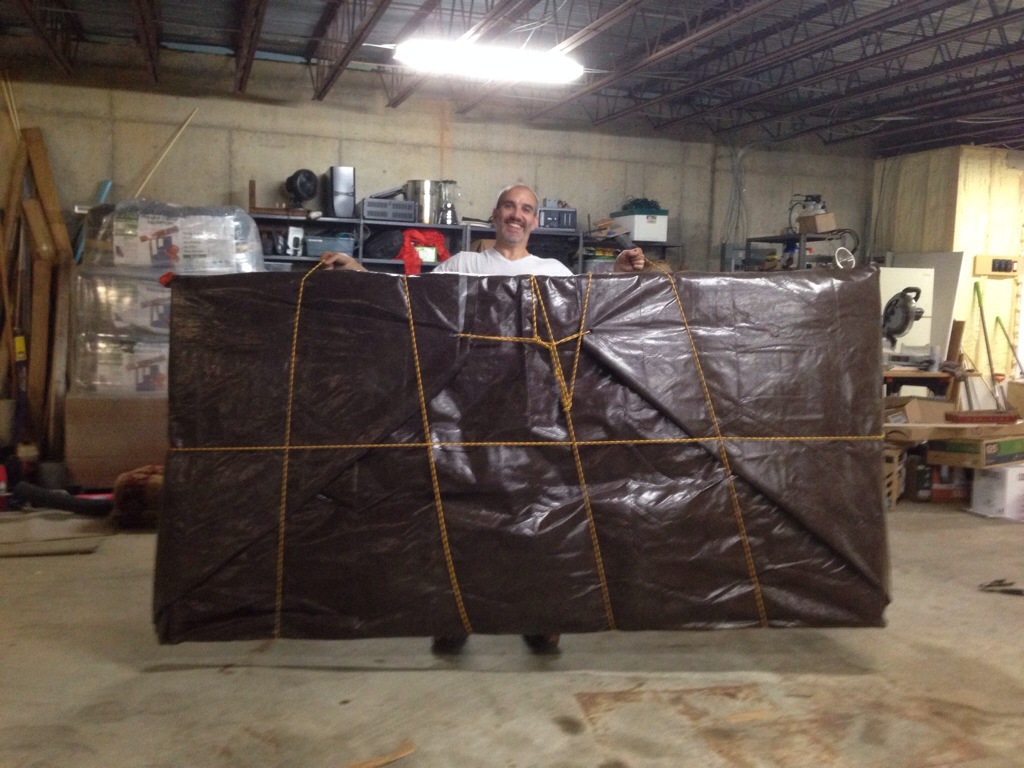

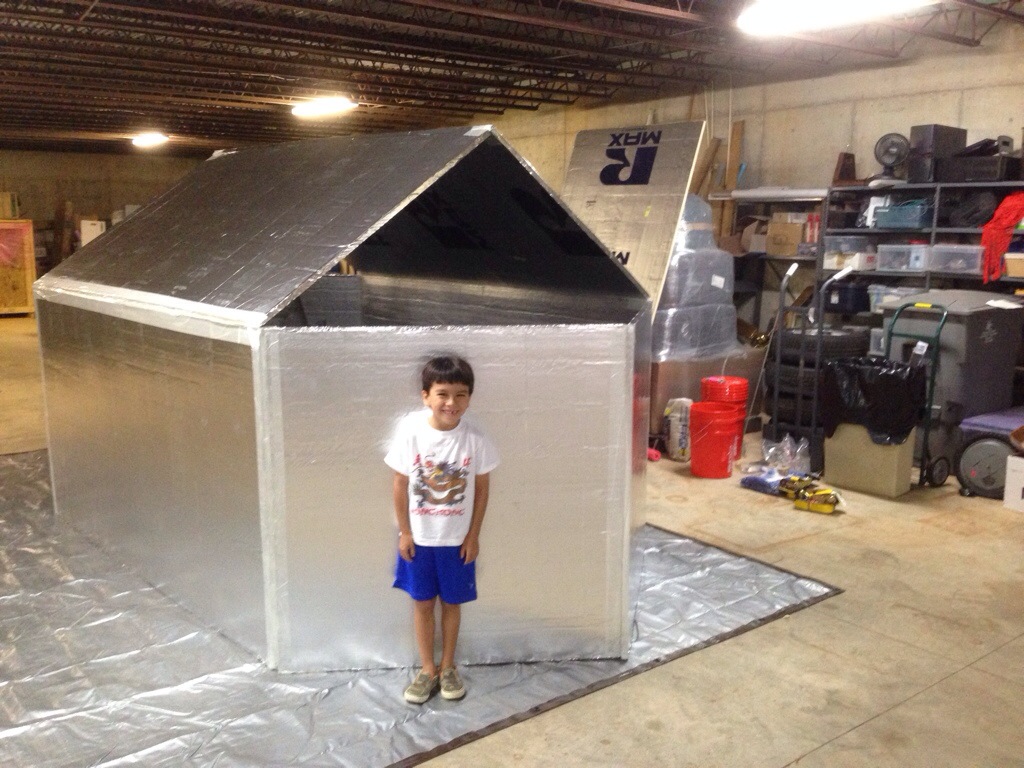

It’s getting there. We will fold the bottom part to a flat package and the top part to a mostly flat package. The two will be assembled on the playa.
